海上用球阀

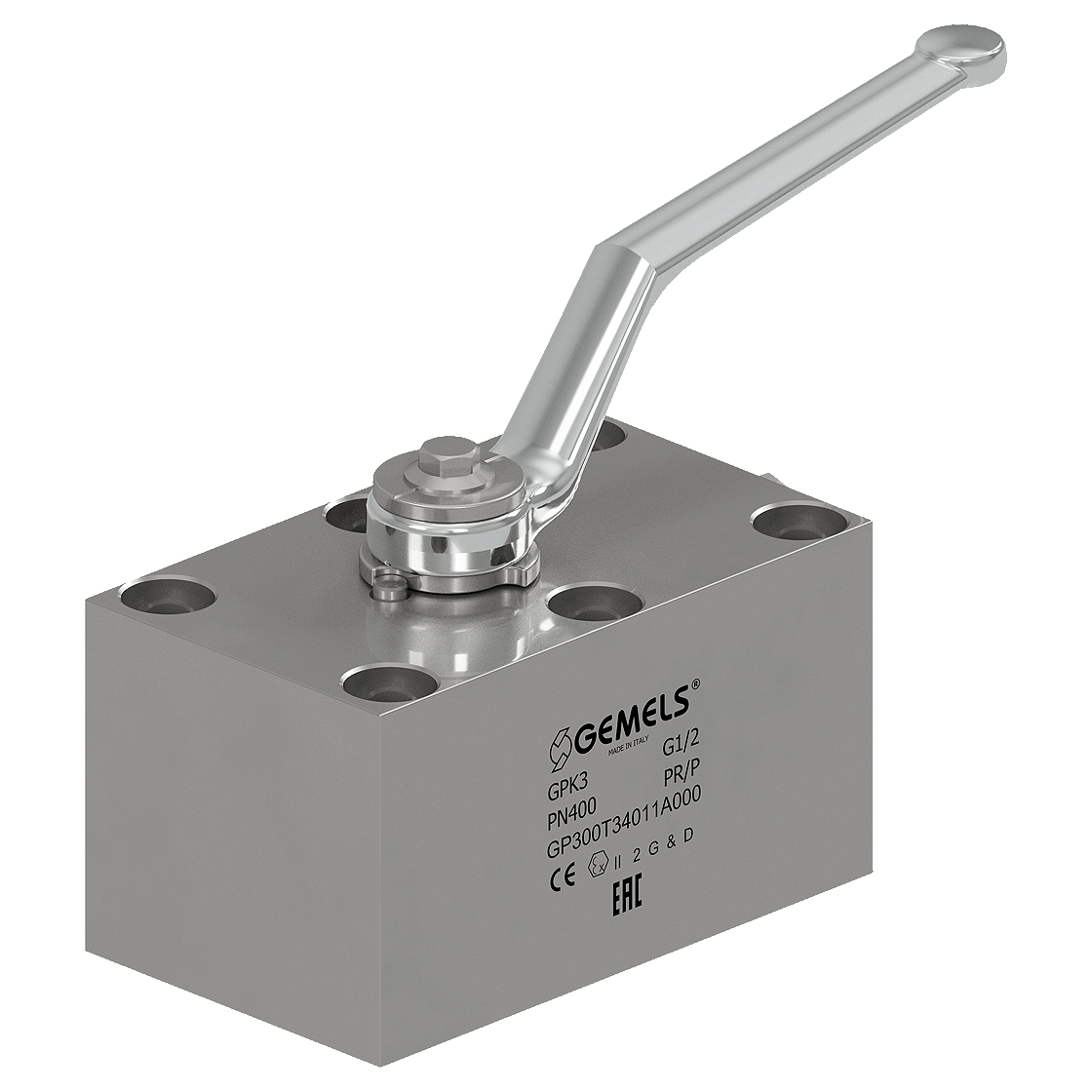

GPK3

valvola a sfera per siderurgia

三通阀体

技术规格表

碳钢
类型 歧管
尺寸 从DN6到DN50
螺纹 钻井模式 Gemels
压力 最高至PN500
温度范围 从-20°C到+100°C
pdf ( 1.13 MB )
材料构成
DPK3 3vie pressione alta
位置 描述 数量 碳钢 不锈钢
1 阀体 1 1,0737
2 适配器 1 1,0737
3 球体 1 1,0737
4 阀杆 1 1,0737
5 球座 2 POM
6 手柄 1 ZINC
7 垫圈 1 1,0116
8 垫圈 1 1,0116
9 阀杆环 1 POM
10 插针 1 1,0737
11 塞格环 1 1,4301
12 适配器O型圈 1 NBR
13 适配器O型圈 1 NBR
14 身体O型圈 3 NBR
15 茎部O型圈 1 NBR
16 螺丝 1 Din 6921 8.8
17 备份 2 PTFE
技术细节
GPK3
DRILLING PATTERN FOR DN6 TO DN10
DRILLING PATTERN FOR DN13 TO DN50
GPK3 - DRILLING PATTERN
Item code Type DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CH1 mm CS D mm D1 mm d mm ⌀d mm ØD mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm ØM1 mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
GP300T15011A000 GPK3 6 50 35 22.5 65 58 6 7.5 35 34.5 48.5 0.5 9.5 13.5 20 17.5 42.5 40 110 61 44.5 6 M6 11.8 7,30 X 2,40 10.5 6.5 9 6 44 27 26.5 0.593 9.5 27
GP300T25011A000 GPK3 10 50 45 22.5 80 70 9.5 11 44 52.5 60 2.5 10 20 27.5 19 59 55 110 101 54 10 M8 14.9 9.92 X 2.62 13.5 8.5 7.5 9 62.5 40 28.75 1.304 10 29
GP300T34011A000 GPK3 13 40 55 30 111 100 13 11 58 74.5 82 8.5 18 22.5 30 33 27 69 60 110 111 76 13 M8 24.9 20.64 X 2.62 13.5 8.5 9.5 51 9 92.5 45 44 2.387 18 44.5
GP300T43011A000 GPK3 20 35 70 38.5 129 118 20 14 69 87.5 97 9.5 21 25.5 35 39 31 88.5 70 180 121.5 90 20 M10 29 23.81 X 2.62 16.5 10.5 11.5 60 14 108.5 51 52 4.079 21 52
GP300T53011A000 GPK3 25 35 80 44 146 135 25 14 81 100 111 15 24 30 40 43 38 98 80 180 131 105 25 M10 34.9 31,42 X 2,62 16.5 10.5 9 66.5 14 124 60 61.25 5.883 24 62
GP300T63011A000 GPK3 32 35 106 58.8 184 165 32 14 96 119 137 17 28 39 50 51 46 124 100 300 124 124 32 M12 39.7 34.59 X 2.62 19 13 11 79 17 147 78 74 12.169 28 74
GP300T73011A000 GPK3 40 35 115 61.3 202 185 37 14 112 112 156 29 47.5 65 56 56 133.5 130 300 134 141 40 M16 47.7 42,52 X 2,62 25 16.5 29 85 17 141 95 85 18.624 29 85
GP300T83011A000 GPK3 50 35 129 72 257 240 48 14 136 136 202 38 56 75 68 68 147 150 300 147.5 174 48 M20 59.8 53,64 X 2,62 31 21 38 106 17 174 112 106 30.644 38 106
认证
CE ATEX
CE PED
EAC
UKCA
下载： 目录和图纸

GPK3

DATASHEET
pdf ( 1.13 MB )

GPK3

DRAWING
某些文件的下载仅限注册人员。如果您尚未注册，请现在继续。 点击此处注册
zip ( 788.42 KB )
GPK3 1/4 stp ( 305.48 KB )
GPK3 3/8 stp ( 787.15 KB )
GPK3 1/2 stp ( 803.31 KB )
GPK3 3/4 stp ( 1.07 MB )
GPK3 1 stp ( 1.04 MB )
