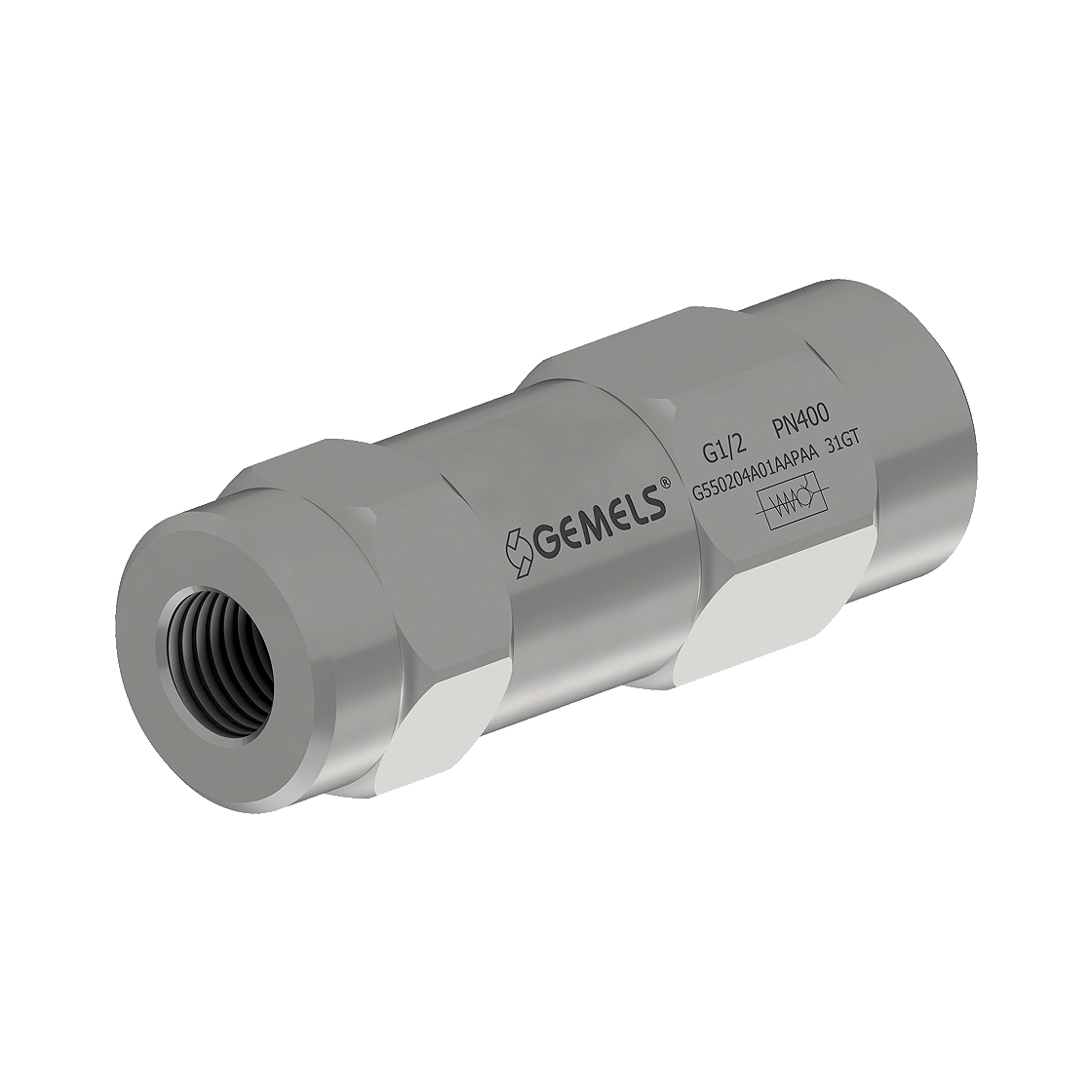

单作用三通控制阀

GPS

single pilot operated check valves per movimento terra

重工业用阀门

技术规格表

碳钢
类型 单作用三通控制阀
尺寸 从DN6到DN25
螺纹 BSP
压力 最高至PN400
温度范围 从-20°C到+100°C
pdf ( 2.40 MB )
技术细节
DIN/ISO 228 BSP
Item code Type DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CH1 mm CS D mm D1 mm d mm ⌀d mm ØD mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm ØM1 mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
G550202A01AARAA GPS G 1/4 103 36 0.25 11 12 1:9 0.25 40 0.65 0.25
G550203A01AARAA GPS G 3/8 109 40 0.375 11.5 30 1:6 0.5 40 0.82 0.25
G550204A01AAPAA GPS G 1/2 120 42 0.5 11 45 1:4.5 0.3 35 0.96 0.25
G550205A01AAPAA GPS G 3/4 131 55 0.75 14 85 1:3.7 0.05 35 1.95 0.25
G550206A01AAPAA GPS G 1 165 55 1 14 120 1:3.5 0.1 35 2.35 0.25
disegno tecnico Gemels
认证
CE ATEX
下载： 目录和图纸
