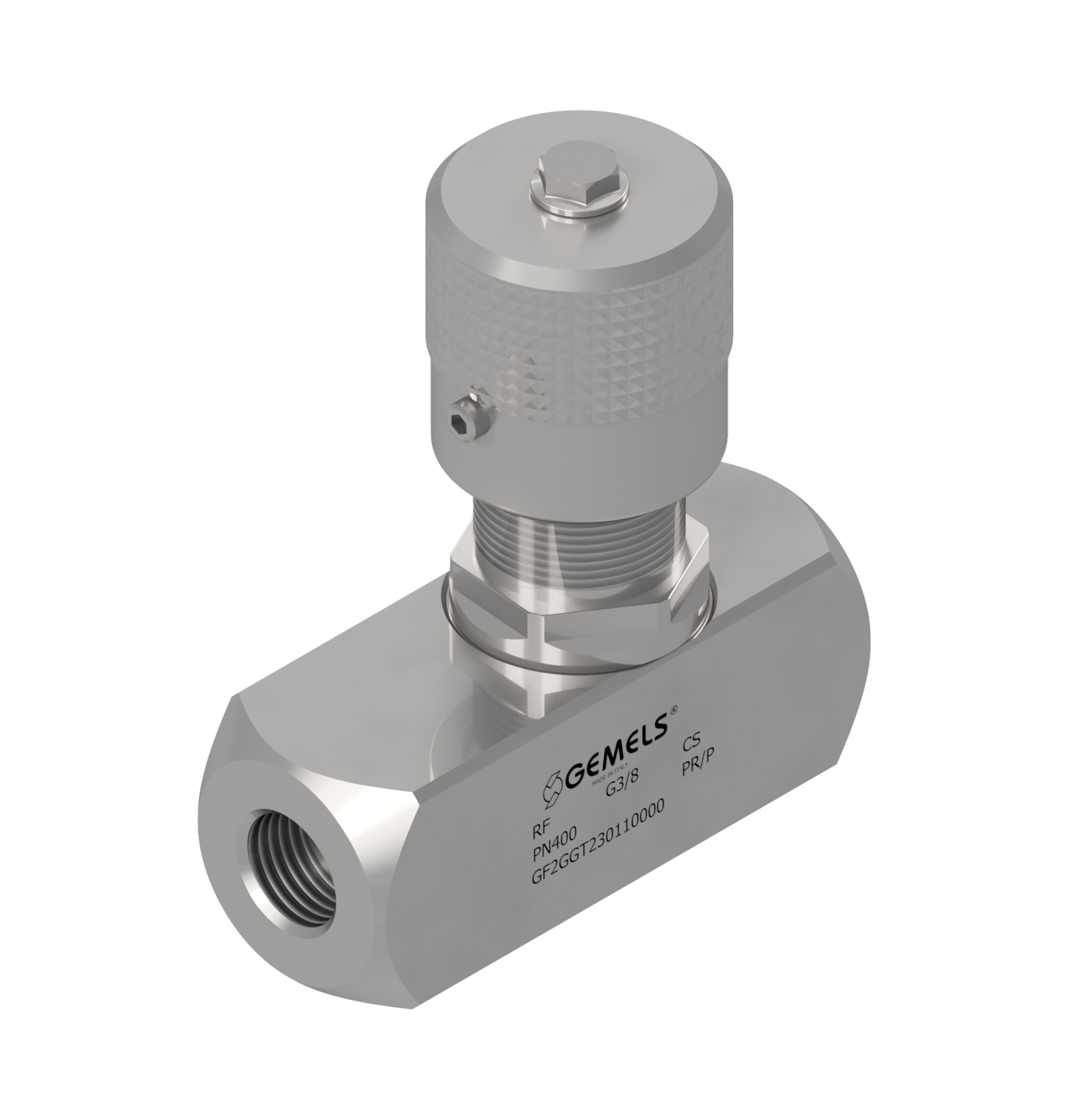

单向流量调节器

RF

农业用阀门

技术规格表

碳钢
类型 单向流量调节器
尺寸 从DN6到DN25
螺纹 BSP-NPT
压力 最高至PN400
温度范围 从-20°C到+100°C
pdf ( 987.00 KB )
材料构成
RF valvola
位置 描述 数量 碳钢 不锈钢
1 阀体 1 1,0737
2 阀杆 1 1,0503
3 手柄 1 ALLUMINIUM
4 弹簧环 1 X 35 Cr Mo 17
5 阀杆环 1 PTFE
6 插针 1 1,0737
7 弹簧 1 1,0116
8 塞格环 1 X 35 Cr Mo 17
9 阀杆O型圈 1 NBR
10 螺丝 1 DIN 7991 8.8
11 盖帽 2 PVC
12 提升阀 1 1,0737
13 螺丝 1 DIN 7991 8.8
技术细节
DIN/ISO 228 BSP
Item code Type DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CH1 mm CS D mm D1 mm d mm ⌀d mm ØD mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm ØM1 mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
GF2GGT130110000 RF G 1/4 6 40 25 12.5 66 25 25 30 75 G 1/4 M20X1 0,05 0.4
GF2GGT230110000 RF G 3/8 10 40 25 12.5 77 35 25 30 75 G 3/8 M20X1 0,05 0.4
GF2GGT330110000 RF G 1/2 13 40 30 15 86 50 30 30 81 G 1/2 M20X1 0,05 0.6
GF2GGT430110000 RF G 3/4 20 40 40 20 112.5 90 40 38 110 G 3/4 M35X1.5 0,05 1.45
GF2GGT530110000 RF G 1 25 40 45 22.5 141 150 45 38 115 G 1 M35X1.5 0,05 2
GF2GGT630110000 RF G 1 1/4 32 35 55 27,5 155 200 55 53 137 G 1 1/4 M45X1.5 0,05 3,3
GF2GGT730110000 RF G 1 1/2 40 35 65 32,5 168 300 65 53 147 G 1 1/2 M45X1.5 0,05 4,7
disegno tecnico Gemels
ANSI/ASME B1.20.1 NPT
Item code Type DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CH1 mm CS D mm D1 mm d mm ⌀d mm ØD mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm ØM1 mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
GF2NNT130110000 RF N 1/4 6 40 25 12.5 66 25 25 30 75 N 1/4 M20X1 0,05 0.4
GF2NNT230110000 RF N 3/8 10 40 25 12.5 77 35 25 30 75 N 3/8 M20X1 0,05 0.4
GF2NNT330110000 RF N 1/2 13 40 30 15 86 50 30 30 81 N 1/2 M20X1 0,05 0.6
GF2NNT430110000 RF N 3/4 20 40 40 20 112.5 90 40 38 110 N 3/4 M35X1.5 0,05 1.45
GF2NNT530110000 RF N 1 25 40 45 22.5 141 150 45 38 115 N 1 M35X1.5 0,05 2
GF2NNT630110000 RF N 1 1/4 32 35 55 27,5 155 200 55 53 137 N 1 1/4 M45X1.5 0,05 3,3
GF2NNT730110000 RF N 1 1/2 40 35 65 32,5 168 300 65 53 147 N 1 1/2 M45X1.5 0,05 4,7
disegno tecnico Gemels
下载： 目录和图纸

RF

DATASHEET
pdf ( 987.00 KB )

RF

DRAWING
某些文件的下载仅限注册人员。如果您尚未注册，请现在继续。 点击此处注册
zip ( 554.60 KB )
RF G 1/4 stp ( 408.93 KB )
RF G 3/8 stp ( 399.36 KB )
RF G 1/2 stp ( 386.44 KB )
RF G 3/4 stp ( 431.04 KB )
RF G 1 stp ( 402.98 KB )
RF N 1/4 stp ( 408.93 KB )
RF N 3/8 stp ( 399.36 KB )
RF N 1/2 stp ( 386.44 KB )
RF N 3/4 stp ( 431.04 KB )
RF N 1 stp ( 402.98 KB )
