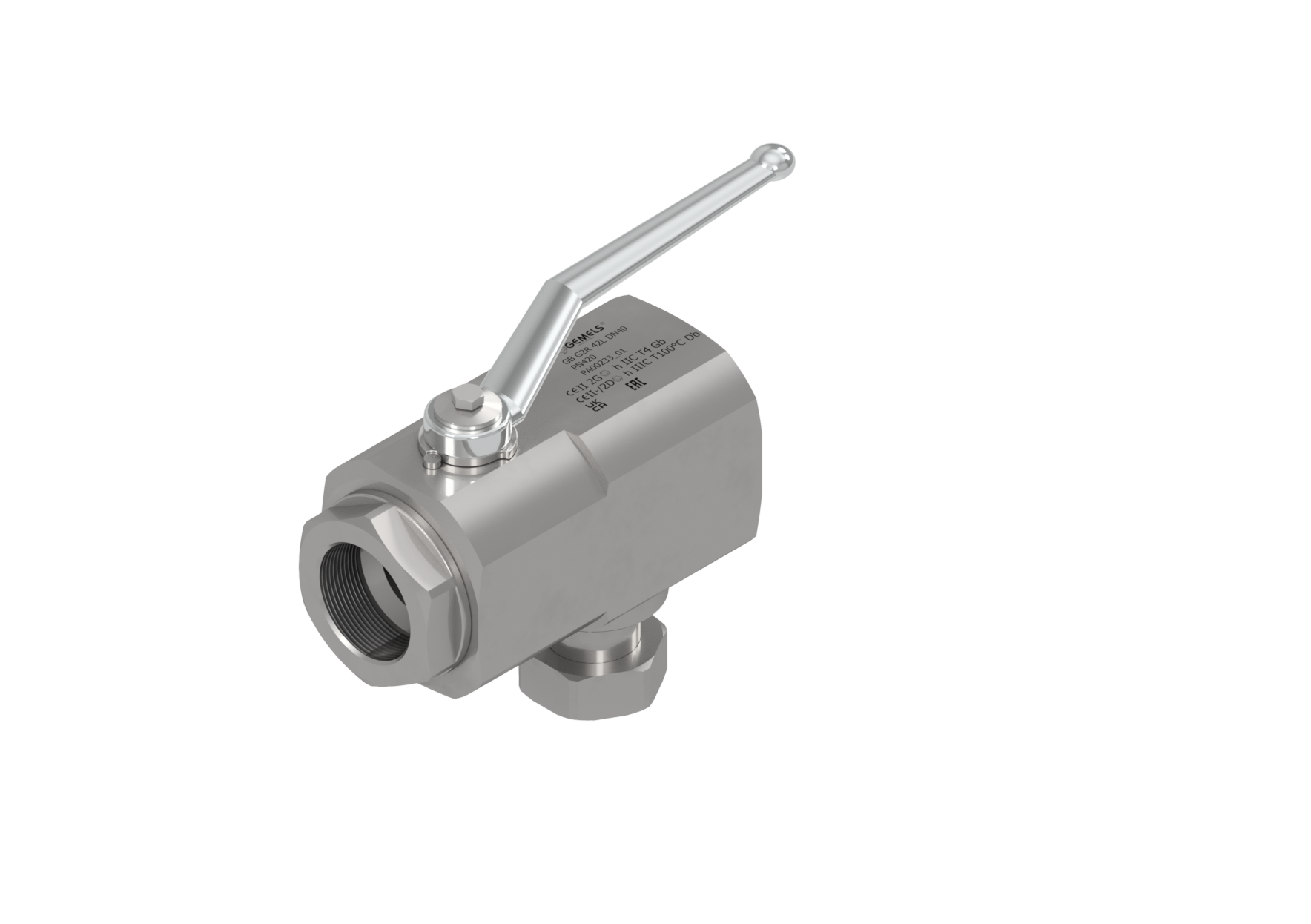

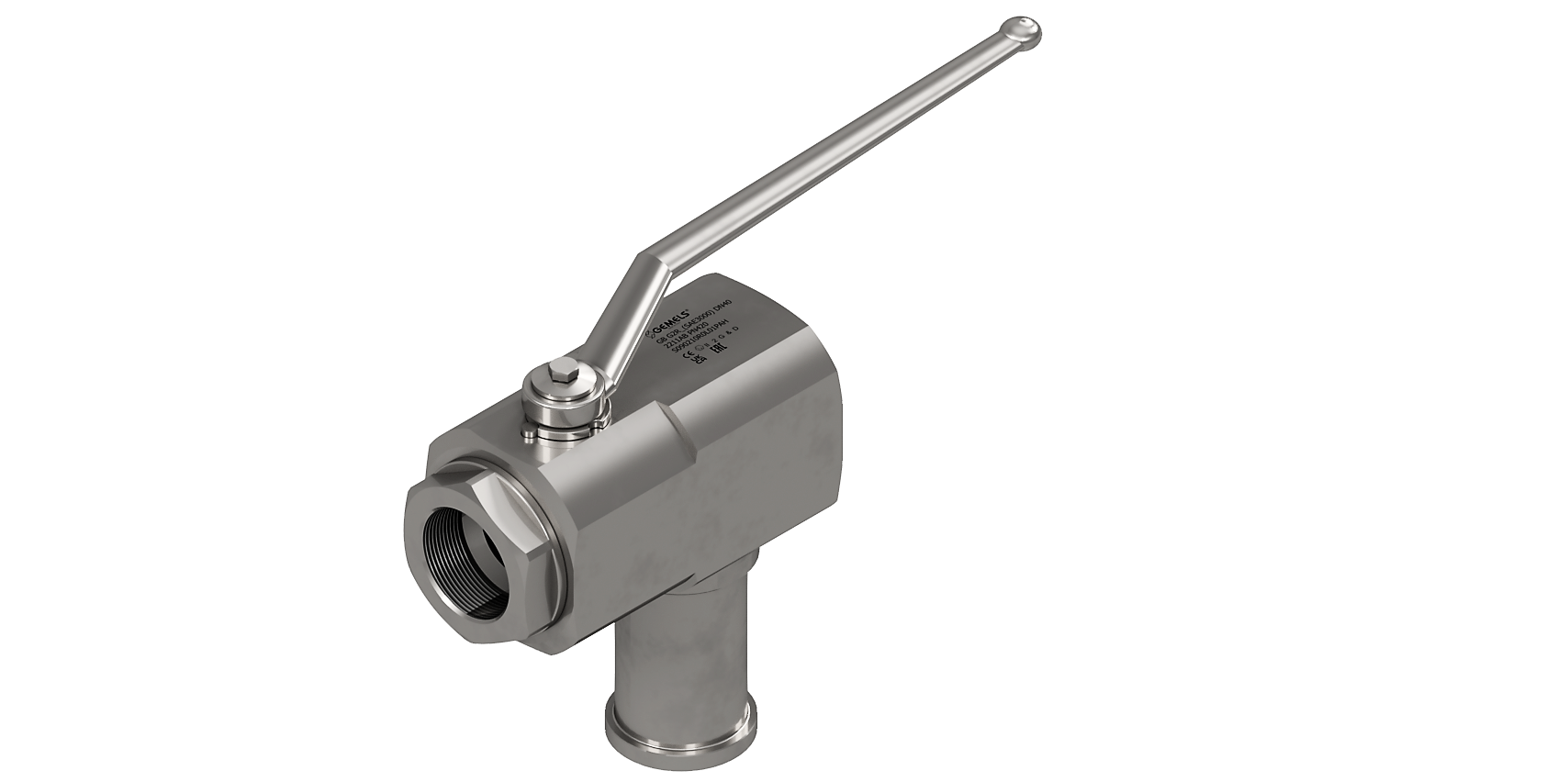

为建筑和电梯行业定制球阀

VA 代表建筑工程

根据特定要求定制阀门

pdf ( 77.95 KB )
技术图纸
Item code Type DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CH1 mm CS D mm D1 mm d mm ⌀d mm ØD mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm ØM1 mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
VA DN40 G2R PIPE SAE3000 VA 40 102.5 49 200 80 177 123 98 310 176 375.5 164 57.5 40 G2 115 17 217
VA DN40 G2R PIPE 42L VA 40 102.5 49 200 80 177 123 98 200 167 265.5 128.5 57.5 40 G2 79.5 17 182
VA DN40 G2R PIPE G2M VA 40 102.5 49 200 80 177 123 98 200 167 265.5 158 57.5 40 G2 109 17 211.5
下载： 目录和图纸
